Jerome Shan 提问时间: 2023-10-16 21:58:26 / 已解决Dear Sir or Madam,
I find a problem with the Pspice model of the device (: when I inserted a gate-resistor, 10 Ohm for example, between pin 5 of the IC and the load capacitors, the simulation cannot converge. As external gate-resistor is common in application designs, how can I solve this problem? I was using the latest version of Pspice for TI in the simulation.
Thanks a lot.
Jerome
Kailyn Chen 回答时间: 2023-10-16 22:25:43 To be honest speaking, I usually use TINA to simulation amplifier or comparator because it is convenience to use.

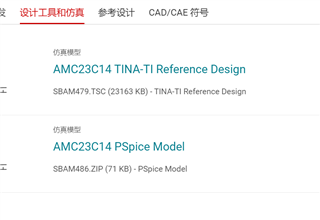

In addition, I found that it has provided the TINA reference design of AMC23C14 on its product folder. Could you please use TINA for simulation instead of Pspice for TI?
Jerome Shan 回答时间: 2023-10-16 22:54:39Hi Kailyn,
OK. Thank you very much for the reply.
Best regards,
Jerome Shan
