TL3312NF160Q

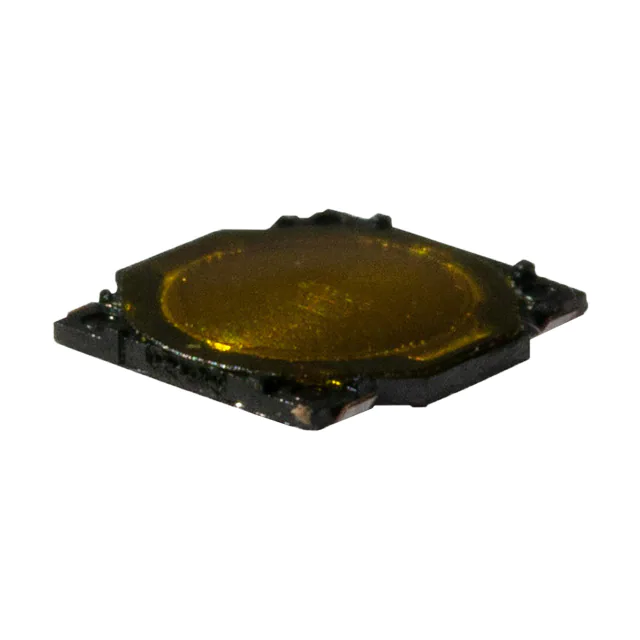

E-Switch TL3312 Ultra-Miniature Tact Switches are miniature surface mount switches with a small footprint measuring 3.7mm x 3.7mm x 0.35mm. The low profile tact switches provide a single pole single throw (SPST) function. Two actuation force options are available including 160gf and 235gf. The operating life for 160gf provides 500,000 cycles, while 235gf provide 50,000 cycles. These 50mA, 12VDC rated tact switches feature 0.15mm travel and an operating/storage temperature of -40°C to +85°C. The TL3312 Series is ideal for applications or markets within wearable electronics, computer peripherals, consumer electronics, instrumentation, telecommunication, and handheld devices.
