AS02808MR-LW152-R
- 描述:额定功率: 1 W 阻抗值: 8 Ohms 频率: 500赫兹
- 品牌: PUI音频 (PUI)
- 交期:2-3 工作日
渠道:
- 自营
- 得捷
- 贸泽
起订量: 1
数量 | 单价 | 合计 |
---|---|---|
1+ | 17.27753 | 17.27753 |
- 库存: 0
- 单价: ¥17.27753
-
数量:
- +
- 总计: ¥17.28
在线询价
温馨提示: 请填写以下信息,以便客户代表及时与您沟通联系。
规格参数
- 零件状态 可供货
- 技术 磁性的
- 类型 一般用途
- 效率值-测试 1W/100毫米
- 效率值-类型 声压级(SPL)
- 功率-额定 1 W
- 功率-最大 1.5瓦
- 端口位置 顶端
- 形状 圆形的
- 材质-磁铁 钕铁硼
- 侵入防护 -
- 阻抗 8 Ohms
- 材质-纸盆 聚酯、聚对苯二甲酸乙二醇酯(PET)
- 频率-自共振 500赫兹
- 端接 Wire Leads
- 高度 - 安装(最大值) 0.217英寸(5.50毫米)
- 大小 / 尺寸 1.102“直径(28.0毫米)
- 效率值-dBA 95
- 制造商 PUI Audio,股份有限公司。
- 等级 IEC 60601-1-8
- 频率范围 500 Hz ~ 20 kHz
- 包装 托盘
- 系列 像

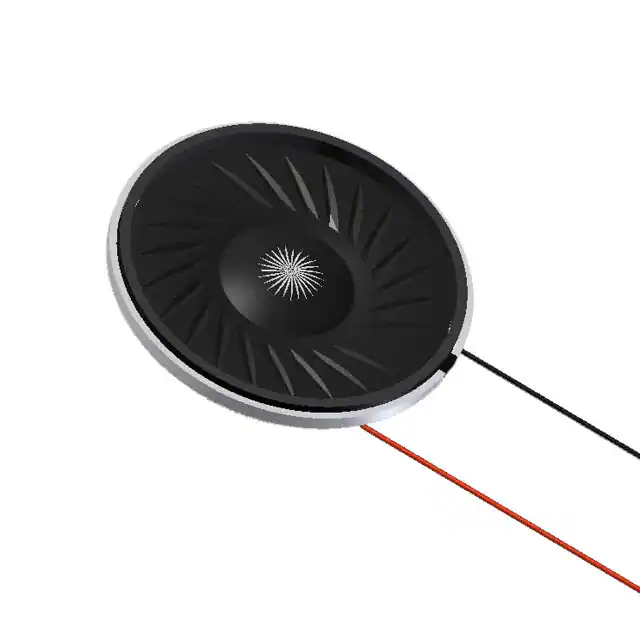

AS02808MR-LW152-R 产品详情
PUI Audio features a selection of off-the-shelf speakers equipped with 6" lead wires attached. Hand soldering to any audio product can be a delicate process with a high risk of inflicting damage to the component. By offering several sizes and variations with this process already completed; PUI Audio will allow customers and engineers the opportunity to prototype and put a product into a design in a much simpler, faster and more reliable fashion. Included in this expanded lead-wired offering are also four different water-resistant speaker options. PUI Audio’s special coating process provides premium quality sound equivalent to that of paper diaphragm speakers coupled with similar element resistance as Mylar diaphragm speakers, while having little to no effect on the frequency response.
AS02808MR-LW152-R所属分类:扬声器,AS02808MR-LW152-R 由 PUI音频 (PUI) 设计生产,可通过久芯网进行购买。AS02808MR-LW152-R价格参考¥17.277532,你可以下载 AS02808MR-LW152-R中文资料、PDF数据手册、Datasheet数据手册功能说明书,可查询AS02808MR-LW152-R规格参数、现货库存、封装信息等信息!
PUI音频 (PUI)

PUI Audio,Inc.是高品质音频设备和组件(包括蜂鸣器、警报和传感器)的领先开发商、制造商和供应商。公司办公室、产品开发、工程、销售和客户服务位于俄亥俄州代顿。
