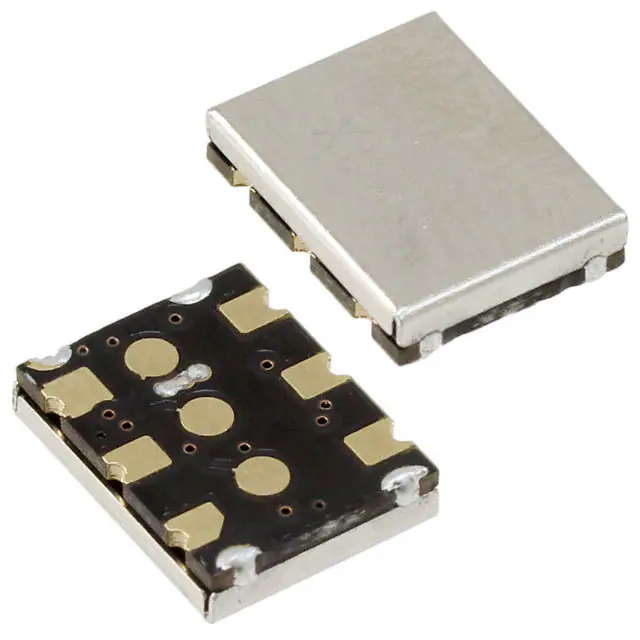

ASGTX-D-40.000MHZ-1-T

Abracon offers the ASGTX series of factory configurable, high performance, fixed- and voltage- controlled TCXOs. The ASGTX temperature-compensated crystal oscillators are designed to accommodate a broad range of precision TCXO requirements without non-recurring engineering (NRE) and extended lead times. This oscillator series is designed and manufactured by Abracon Corporation and is available from one piece to high volume production quantities. The ASGTX is available with either LVDS or LVPECL output from 10 MHz - 1.50 GHz, at any desired frequency, such as 149.875 MHz, with tight as ±1.00 ppm stability over temperature. The ASGTX is suitable for a wide variety of precision timing applications where TCXO/VCTCXO’s are typically employed. In addition, for high-frequency LO requirements, customers have traditionally relied upon SAW-based oscillators. Such devices are only available at a few fixed frequencies, such as 915 MHz and 1.0 GHz, are typically in 9.0 x 14.0 mm or larger packages, and vary as much as ±100 ppm over temperature.
