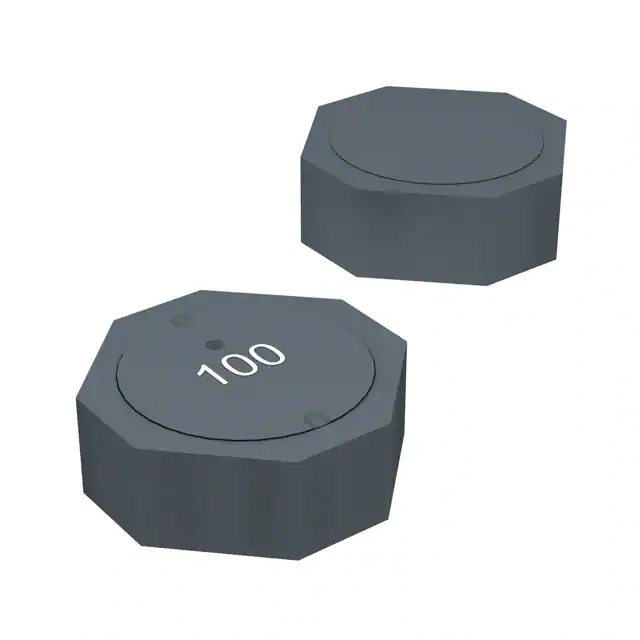

9icnet provides you with SRU5018-3R3Y designed and produced by Bourns Inc., which is sold in 9icnet on the spot, and can be purchased through channels such as the original factory and agents. SRU5018-3R3Y price reference $0.40822. Bourns Inc. SRU5018-3R3Y Package/Specification: FIXED IND 3.3UH SMD. You can download SRU5018-3R3Y english data, pin diagram, Datasheet data sheet function manual, the data contains detailed pin diagrams of diode rectifiers, application circuit diagrams of functions, voltages, usage methods and tutorials.
Prices and stocks marked on 9icnet are for reference only. If you don't find what you are looking for, you can contact us by email or online message, such as SRU5018-3R3Y price, stock quantity, data sheet and manufacturer. We look forward to your contact and provide you with quality service.
The SRU5018-2R2Y is FIXED IND 2.2UH 2.3A 20.5 MOHM, that includes SRU5018 Series, they are designed to operate with a Power Inductors Product, Type is shown on datasheet note for use in a Wirewound, that offers Packaging features such as Digi-ReelR Alternate Packaging, Mounting Style is designed to work in SMD/SMT, as well as the 2.3A Current Rating, the device can also be used as SMD/SMT Termination Style. In addition, the Qualification is AEC-Q200, it has an Operating Temperature Range range of - 40 C to + 125 C, the device has a 1.8 mm of Height, and Length is 5.2 mm, and the Width is 5.2 mm, and Package Case is Nonstandard, it has an Operating Temperature range of -40°C ~ 125°C, and Mounting Type is Surface Mount, and the Size Dimension is 0.205" L x 0.205" W (5.20mm x 5.20mm), and Tolerance is ±30%, and the Height Seated Max is 0.079" (2.00mm), and Shielding is Shielded, and the Test Frequency is 7.96 MHz, and Inductance is 2.2μH, and the DC Resistance DCR is 20.5 mOhm, and Material Core is Ferrite, and the Current Saturation is 2.1A, and Q Freq is 10 @ 7.96MHz, and the Frequency Self Resonant is 130MHz, and Frequency Test is 100kHz, and the Maximum DC Current is 2.3 A, and Maximum DC Resistance is 20.5 mOhms, and the Self Resonant Frequency is 130 MHz, and Q Minimum is 10.
The SRU5018-220Y is FIXED IND 22UH 680MA 160 MOHM, that includes Wirewound Type, they are designed to operate with a ±30% Tolerance, Size Dimension is shown on datasheet note for use in a 0.205" L x 0.205" W (5.20mm x 5.20mm), that offers Shielding features such as Shielded, Series is designed to work in SRU5018, as well as the 12 @ 2.52MHz Q Freq, the device can also be used as Digi-ReelR Alternate Packaging Packaging. In addition, the Package Case is Nonstandard, it has an Operating Temperature range of -40°C ~ 125°C, the device has a Surface Mount of Mounting Type, and Material Core is Ferrite, and the Inductance is 22μH, and Height Seated Max is 0.079" (2.00mm), and the Frequency Test is 100kHz, and Frequency Self Resonant is 28MHz, and the DC Resistance DCR is 160 mOhm, and Current Saturation is 650mA, and the Current Rating is 680mA.
The SRU5018-330Y is FIXED IND 33UH 660MA 220 MOHM, that includes 660mA Current Rating, they are designed to operate with a 560mA Current Saturation, DC Resistance DCR is shown on datasheet note for use in a 220 mOhm, that offers Frequency Self Resonant features such as 23MHz, Frequency Test is designed to work in 100kHz, as well as the 0.079" (2.00mm) Height Seated Max, the device can also be used as 33μH Inductance. In addition, the Material Core is Ferrite, the device is offered in Surface Mount Mounting Type, it has an Operating Temperature range of -40°C ~ 125°C, and Package Case is Nonstandard, and the Packaging is Tape & Reel (TR), and Q Freq is 13 @ 2.52MHz, and the Series is SRU5018, and Shielding is Shielded, and the Size Dimension is 0.205" L x 0.205" W (5.20mm x 5.20mm), and Tolerance is ±30%, and the Type is Wirewound.
