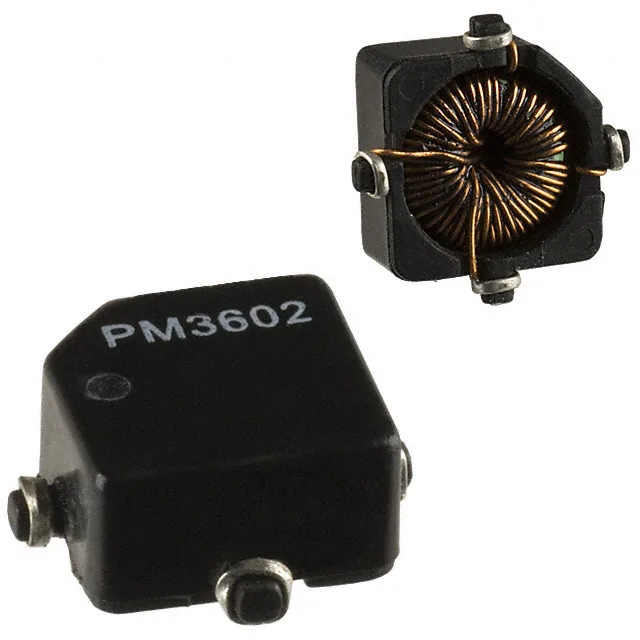

9icnet provides you with PM3602-250-RC designed and produced by Bourns Inc., which is sold in 9icnet on the spot, and can be purchased through channels such as the original factory and agents. PM3602-250-RC price reference $1.09925. Bourns Inc. PM3602-250-RC Package/Specification: INDUCT ARRAY 2 COIL 250UH SMD. You can download PM3602-250-RC english data, pin diagram, Datasheet data sheet function manual, the data contains detailed pin diagrams of diode rectifiers, application circuit diagrams of functions, voltages, usage methods and tutorials.
Prices and stocks marked on 9icnet are for reference only. If you don't find what you are looking for, you can contact us by email or online message, such as PM3602-250-RC price, stock quantity, data sheet and manufacturer. We look forward to your contact and provide you with quality service.
The PM3602-25 is INDUCT ARRAY 2 COIL 25UH SMD, that includes PM3600 Series, they are designed to operate with a Tape & Reel (TR) Packaging, Height is shown on datasheet note for use in a 0.225" (5.72mm), that offers Package Case features such as Nonstandard, it has an Operating Temperature range of -55°C ~ 125°C, as well as the Surface Mount Mounting Type, the device can also be used as 0.452" L x 0.354" W (11.48mm x 8.99mm) Size Dimension. In addition, the Tolerance is ±20%, the device is offered in Unshielded Shielding, the device has a 2 of Number of Coils, and Inductance Connected In Series is 100μH, and the Inductance Connected In Parallel is 25μH, and Current Rating Parallel is 1.17A, and the Current Rating Series is 590mA, and DC Resistance DCR Parallel is 98 mOhm Max, and the DC Resistance DCR Series is 390 mOhm Max.
The PM3602-250-B is INDUCT ARRAY 2 COIL 250UH SMD, that includes ±20% Tolerance, they are designed to operate with a 0.452" L x 0.354" W (11.48mm x 8.99mm) Size Dimension, Shielding is shown on datasheet note for use in a Unshielded, that offers Series features such as PM3600, Packaging is designed to work in Bulk, as well as the Nonstandard Package Case, it has an Operating Temperature range of -55°C ~ 125°C. In addition, the Number of Coils is 2, the device is offered in Surface Mount Mounting Type, the device has a 1mH of Inductance Connected In Series, and Inductance Connected In Parallel is 250μH, and the Height is 0.225" (5.72mm), and DC Resistance DCR Series is 4.76 Ohm Max, and the DC Resistance DCR Parallel is 1.19 Ohm Max, and Current Rating Series is 170mA, and the Current Rating Parallel is 330mA.
The PM3602-250-B-RC is INDUCT ARRAY 2 COIL 250UH SMD, that includes 330mA Current Rating Parallel, they are designed to operate with a 170mA Current Rating Series, DC Resistance DCR Parallel is shown on datasheet note for use in a 1.19 Ohm Max, that offers DC Resistance DCR Series features such as 4.76 Ohm Max, Height is designed to work in 0.225" (5.72mm), as well as the 250μH Inductance Connected In Parallel, the device can also be used as 1mH Inductance Connected In Series. In addition, the Mounting Type is Surface Mount, the device is offered in 2 Number of Coils, it has an Operating Temperature range of -55°C ~ 125°C, and Package Case is Nonstandard, and the Packaging is Bulk, and Series is PM3600, and the Shielding is Unshielded, and Size Dimension is 0.452" L x 0.354" W (11.48mm x 8.99mm), and the Tolerance is ±20%.
