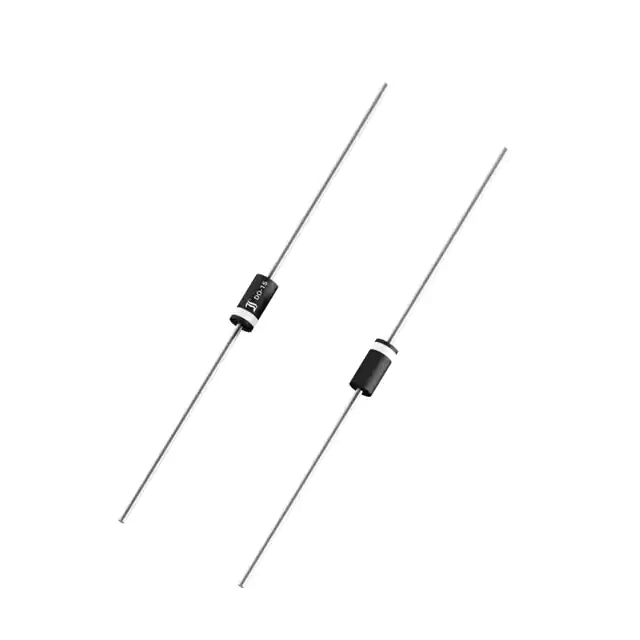

The BZW06-136 parts are Unidirectional and bidirectional Transient Voltage Suppressor diodes, manufactured by SUNMATE are available for purchase at 9icnet Electronics. Here you can find various types and values of electronic parts from the world's leading manufacturers. The BZW06-136 components of 9icnet Electronics are carefully chosen, undergo stringent quality control, and are successfully meet all required standards.
The production status marked on 9icnet.com is for reference only. If you didn't find what you were looking for, you can get more valuable information by emails, such as the BZW06-136 Inventory quantity, preferential price, datasheet, and manufacturer. We are always happy to hear from you, so feel free to contact us.
The BZW06-128RL is TVS DIODE 128VWM 265VC DO15, that includes BZW06, TRANSIL? Series, they are designed to operate with a Zener Type, Packaging is shown on datasheet note for use in a Tape & Reel (TR), that offers Package Case features such as DO-204AC, DO-15, Axial, Mounting Type is designed to work in Through Hole, as well as the General Purpose Applications, the device can also be used as DO-15 Supplier Device Package. In addition, the Unidirectional Channels is 1, the device is offered in 128V Voltage Reverse Standoff Typ, the device has a 143V of Voltage Breakdown Min, and Voltage Clamping Max Ipp is 265V, and the Current Peak Pulse 10 1000μs is 15A (8/20μs), and Power Peak Pulse is 600W, and the Power Line Protection is No, and Capacitance Frequency is 400pF @ 1MHz.
The BZW06-13 is TVS Diodes - Transient Voltage Suppressors 13V 600W 5% Uni, that includes 12.8 V Working Voltage, they are designed to operate with a 3.6(Max) mm Width, Polarity is shown on datasheet note for use in a Unidirectional, that offers Peak Surge Current features such as 147 A, Pd Power Dissipation is designed to work in 600 W, as well as the BZW06-13 R0 Part Aliases, the device can also be used as Reel Packaging. In addition, the Package Case is DO-15-2, it has an Operating Temperature Range range of - 65 C to + 175 C, the device has a Axial of Mounting Style, it has an Minimum Operating Temperature range of - 65 C, it has an Maximum Operating Temperature range of + 175 C, and Length is 7.6 mm, and the Clamping Voltage is 27.2 V, and Breakdown Voltage is 14.3 V.
The BZW06-128 is TVS Diodes - Transient Voltage Suppressors 128V 600W 5% Uni, that includes 143 V Breakdown Voltage, they are designed to operate with a 265 V Clamping Voltage, Length is shown on datasheet note for use in a 7.6 mm, it has an Maximum Operating Temperature range of + 175 C, it has an Minimum Operating Temperature range of - 65 C, as well as the Axial Mounting Style, it has an Operating Temperature Range range of - 65 C to + 175 C. In addition, the Package Case is DO-15-2, the device is offered in Reel Packaging, the device has a BZW06-128 R0 of Part Aliases, and Pd Power Dissipation is 600 W, and the Peak Surge Current is 15 A, and Polarity is Unidirectional, and the Width is 3.6(Max) mm, and Working Voltage is 128 V.
The BZW06-128B is TVS Diodes - Transient Voltage Suppressors 128V 600W 5% Bidir, that includes Reel Packaging, they are designed to operate with a DO-15-2 Package Case, Part Aliases is shown on datasheet note for use in a BZW06-128B R0, that offers Polarity features such as Bidirectional, Mounting Style is designed to work in Axial, as well as the 7.6 mm Length, the device can also be used as 600 W Pd Power Dissipation. In addition, the Width is 3.6(Max) mm, the device is offered in 265 V Clamping Voltage, the device has a 15 A of Peak Surge Current, and Breakdown Voltage is 143 V, and the Working Voltage is 128 V, it has an Maximum Operating Temperature range of + 175 C, it has an Operating Temperature Range range of - 65 C to + 175 C, it has an Minimum Operating Temperature range of - 65 C.
