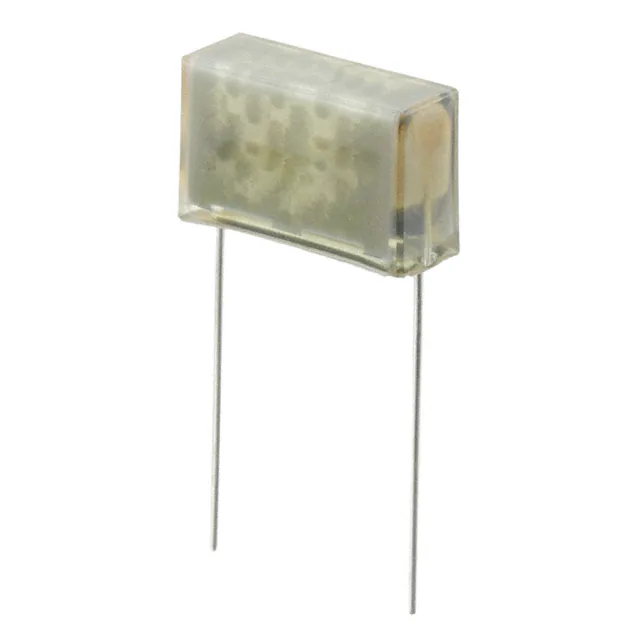

9icnet provides you with PME261JC5680KR30 designed and produced by KEMET, which is sold in 9icnet on the spot, and can be purchased through channels such as the original factory and agents. PME261JC5680KR30 price reference $3.07000. KEMET PME261JC5680KR30 Package/Specification: CAP FILM 0.068UF 10% 1KVDC RAD. You can download PME261JC5680KR30 english data, pin diagram, Datasheet data sheet function manual, the data contains detailed pin diagrams of diode rectifiers, application circuit diagrams of functions, voltages, usage methods and tutorials.
Prices and stocks marked on 9icnet are for reference only. If you don't find what you are looking for, you can contact us by email or online message, such as PME261JC5680KR30 price, stock quantity, data sheet and manufacturer. We look forward to your contact and provide you with quality service.
The PMDXB950UPEZ is MOSFET 2P-CH 20V 0.5A 6DFN, that includes Digi-ReelR Alternate Packaging Packaging, they are designed to operate with a 6-XFDFN Exposed Pad Package Case, it has an Operating Temperature range of -55°C ~ 150°C (TJ), that offers Mounting Type features such as Surface Mount, Supplier Device Package is designed to work in DFN1010B-6, as well as the 2 P-Channel (Dual) FET Type, the device can also be used as 265mW Power Max. In addition, the Drain to Source Voltage Vdss is 20V, the device is offered in 43pF @ 10V Input Capacitance Ciss Vds, the device has a Logic Level Gate of FET Feature, and Current Continuous Drain Id 25°C is 500mA, and the Rds On Max Id Vgs is 1.4 Ohm @ 500mA, 4.5V, and Vgs th Max Id is 950mV @ 250μA, and the Gate Charge Qg Vgs is 2.1nC @ 4.5V.
The PME261JB5330KR30 is CAP FILM 0.033UF 10% 1KVDC RAD, that includes 1000V (1kV) Voltage Rating DC, they are designed to operate with a 500V Voltage Rating AC, Tolerance is shown on datasheet note for use in a ±10%, that offers Termination features such as PC Pins, Size Dimension is designed to work in 0.728" L x 0.307" W (18.50mm x 7.80mm), as well as the PME261 Series, the device can also be used as Bulk Packaging. In addition, the Package Case is Radial, it has an Operating Temperature range of -40°C ~ 70°C, the device has a Through Hole of Mounting Type, and Lead Spacing is 0.598" (15.20mm), and the Height Seated Max is 0.531" (13.50mm), and Dielectric Material is Paper, Metallized, and the Capacitance is 0.033μF, and Applications is General Purpose.
The PME261JB5220KR30 is CAP FILM 0.022UF 10% 500VAC RAD, that includes EMI, RFI Suppression Applications, they are designed to operate with a 0.022μF Capacitance, Dielectric Material is shown on datasheet note for use in a Paper, Metallized, that offers Height Seated Max features such as 0.512" (13.00mm), Lead Spacing is designed to work in 0.598" (15.20mm), as well as the Through Hole Mounting Type, it has an Operating Temperature range of -40°C ~ 100°C. In addition, the Package Case is Radial, the device is offered in Bulk Packaging, the device has a PME261 of Series, and Size Dimension is 0.728" L x 0.287" W (18.50mm x 7.30mm), and the Termination is PC Pins, and Tolerance is ±10%, and the Voltage Rating AC is 500V.
