stm32g0 range1 range2 有什么区别?

avatar liyikuan 提问时间: 2023-08-19 07:40:14 / 已解决

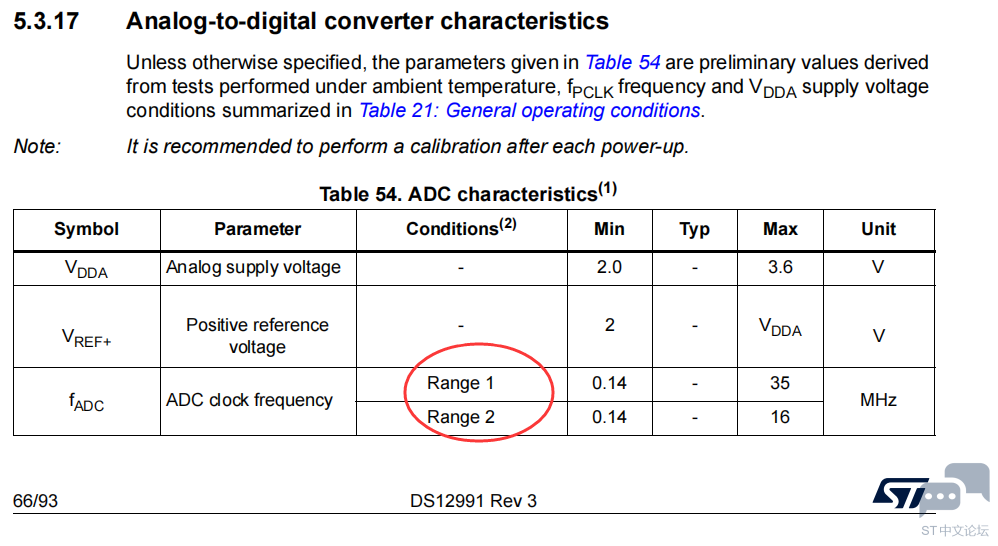

stm32g0 range1 range2 有什么区别? [相关图片]

哪里有关于Range1 Range2的区别说明?


如需获得 stm32g0 等器件的更多信息,请点击链接或 点击此处 联系在线客服!

1个回答
  • avatar xmshao
    最佳答案
    回答时间: 2023-08-19 08:12:06

    在G0的参考手册里有详细的如下描述:: Two voltage ranges are available: Range 1: High-performance range The main regulator provides a typical output voltage at 1.2V. The system clock frequency can be up to 64MHz. The Flash access time for read access is minimum, write and erase operations are possible. Range 2: Low-power range The main regulator provides a typical output voltage at 1.0V. The system clock frequency can be up to 16 MHz.The Flash memory access time for a read access is increased as compared to Range 1; write and erase operations are not possible.
