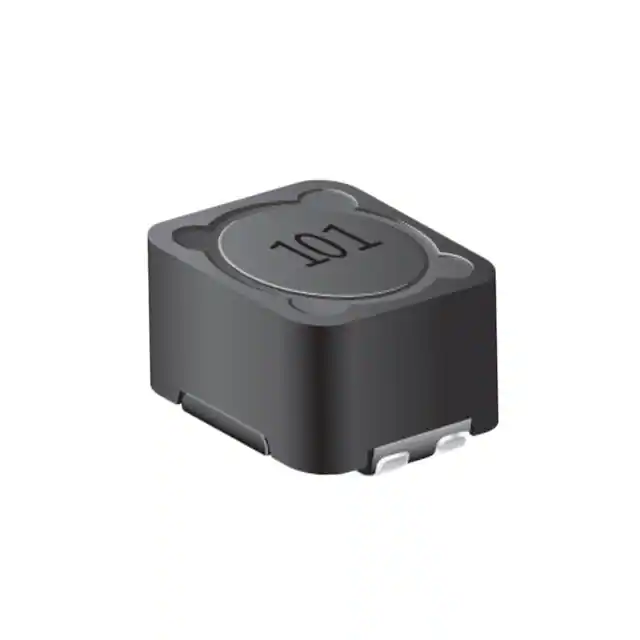

9icnet provides you with SRF1280A-100M designed and produced by Bourns Inc., which is sold in 9icnet on the spot, and can be purchased through channels such as the original factory and agents. SRF1280A-100M price reference $2.48000. Bourns Inc. SRF1280A-100M Package/Specification: INDUCT ARRAY 2 COIL 10UH SMD. You can download SRF1280A-100M english data, pin diagram, Datasheet data sheet function manual, the data contains detailed pin diagrams of diode rectifiers, application circuit diagrams of functions, voltages, usage methods and tutorials.
Prices and stocks marked on 9icnet are for reference only. If you don't find what you are looking for, you can contact us by email or online message, such as SRF1280A-100M price, stock quantity, data sheet and manufacturer. We look forward to your contact and provide you with quality service.
SRF1260A-R47Y with pin details, that includes Automotive, AEC-Q200, SRF1260A Series, they are designed to operate with a Power Inductors Product, Type is shown on datasheet note for use in a AEC-Q200 Dual-Winding Shielded Power Inductors, that offers Packaging features such as Digi-ReelR Alternate Packaging, Mounting Style is designed to work in SMD/SMT, as well as the SMD/SMT Termination Style, it has an Operating Temperature Range range of - 40 C to + 125 C. In addition, the Height is 0.244" (6.20mm), the device is offered in 12.5 mm Length, the device has a 12.5 mm of Width, and Package Case is Nonstandard, it has an Operating Temperature range of -40°C ~ 125°C, and Mounting Type is Surface Mount, and the Size Dimension is 0.492" L x 0.492" W (12.50mm x 12.50mm), and Tolerance is ±30%, and the Shielding is Shielded, and Number of Coils is 2, and the Inductance Connected In Series is 1.88μH, and Inductance Connected In Parallel is 470nH, and the Current Rating Parallel is 17.6A, and Current Rating Series is 8.8A, and the Current Saturation Parallel is 33A, and Current Saturation Series is 16.5A, and the DC Resistance DCR Parallel is 5.3 mOhm Max, and DC Resistance DCR Series is 21.2 mOhm Max, and the Maximum DC Current is 16.5 A, and Maximum DC Resistance is 5.3 mOhms, and the Core Material is Ferrite, and Inductance Parallel is 470 nH, and the Inductance Series is 1.88 uH.
The SRF1260-R47Y is INDUCT ARRAY 2 COIL 470NH SMD, that includes 12.5 mm Width, they are designed to operate with a Dual-Winding Shielded Power Inductors Type, Tolerance is shown on datasheet note for use in a ±30%, that offers Termination Style features such as SMD/SMT, Size Dimension is designed to work in 0.492" L x 0.492" W (12.50mm x 12.50mm), as well as the Shielded Shielding, the device can also be used as SRF1260 Series. In addition, the Product is SMD Power Inductors, the device is offered in Digi-ReelR Alternate Packaging Packaging, the device has a Nonstandard of Package Case, it has an Operating Temperature Range range of - 40 C to + 125 C, it has an Operating Temperature range of -40°C ~ 125°C, and Number of Coils is 2, and the Mounting Style is SMD/SMT, and Mounting Type is Surface Mount, and the Maximum DC Resistance is 5.3 mOhms, and Maximum DC Current is 17.6 A, and the Length is 12.5 mm, and Inductance Series is 1.88 uH, and the Inductance Parallel is 0.47 uH, and Inductance Connected In Series is 1.88μH, and the Inductance Connected In Parallel is 470nH, and Height is 0.244" (6.20mm), and the DC Resistance DCR Series is 21.2 mOhm Max, and DC Resistance DCR Parallel is 5.3 mOhm Max, and the Current Saturation Series is 16.5A, and Current Saturation Parallel is 33A, and the Current Rating Series is 8.8A, and Current Rating Parallel is 17.6A, and the Core Material is Ferrite.
SRF1269 with circuit diagram manufactured by ASI. is part of the IC Chips.
